Config

Prerequisites

Here's a checklist of things to have setup on your GCP Project when getting started:

The GCP project must be associated to a billing account for it to used. Use the link: https://console.cloud.google.com/billing/linkedaccount to check if your project is linked to a billing account. Make sure to choose your project from the project dropdown in GCP console.

✅ Enable services

WarpBuild requires the following services be enabled before initiating a cloud connect. Make sure to choose your project from the project dropdown in GCP console.

Service	Purpose	Link
Cloud Storage API	Used for caches and storing telemetry	Enable
IAM Service Account Credentials API	Generates short lived tokens through our service account to your project specific service account	Enable
Identity and Access Management (IAM) API	Creates service account for access management in your project	Enable
Cloud Deployment Manager V2 API	Creates cloud integrations and stacks using deployment manager for easier versioning	Enable
Compute Engine API	Used for runner lifecycle management	Enable
Cloud Resource Manager API	Used for resource tagging and management	Enable

Permissions

Users should have permissions to create the resources for cloud integration and stack.

The following roles should be associated with the user:

Cloud Connection

Creating a cloud connection sets up a service account role with the permissions required by WarpBuild Stacks and runners. This SA can be impersonated by WarpBuild's service account to generate short lived tokens which we use for access.

Stack

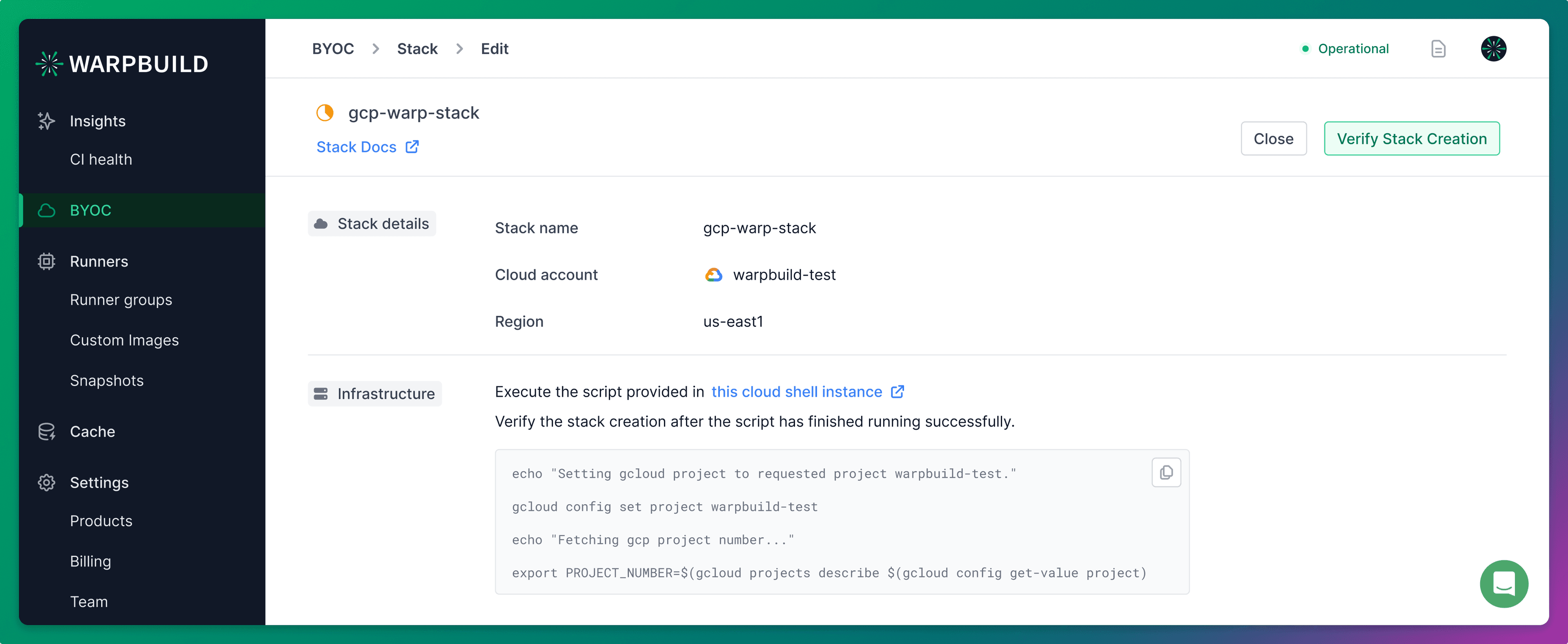

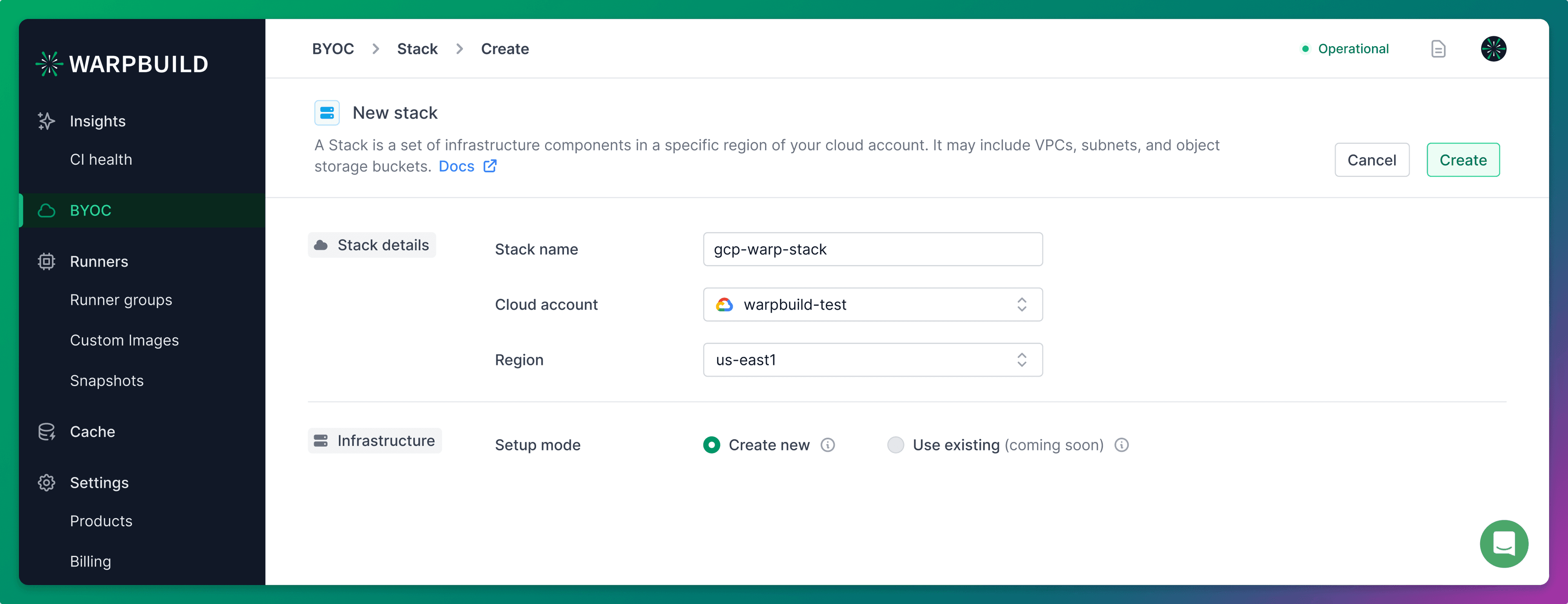

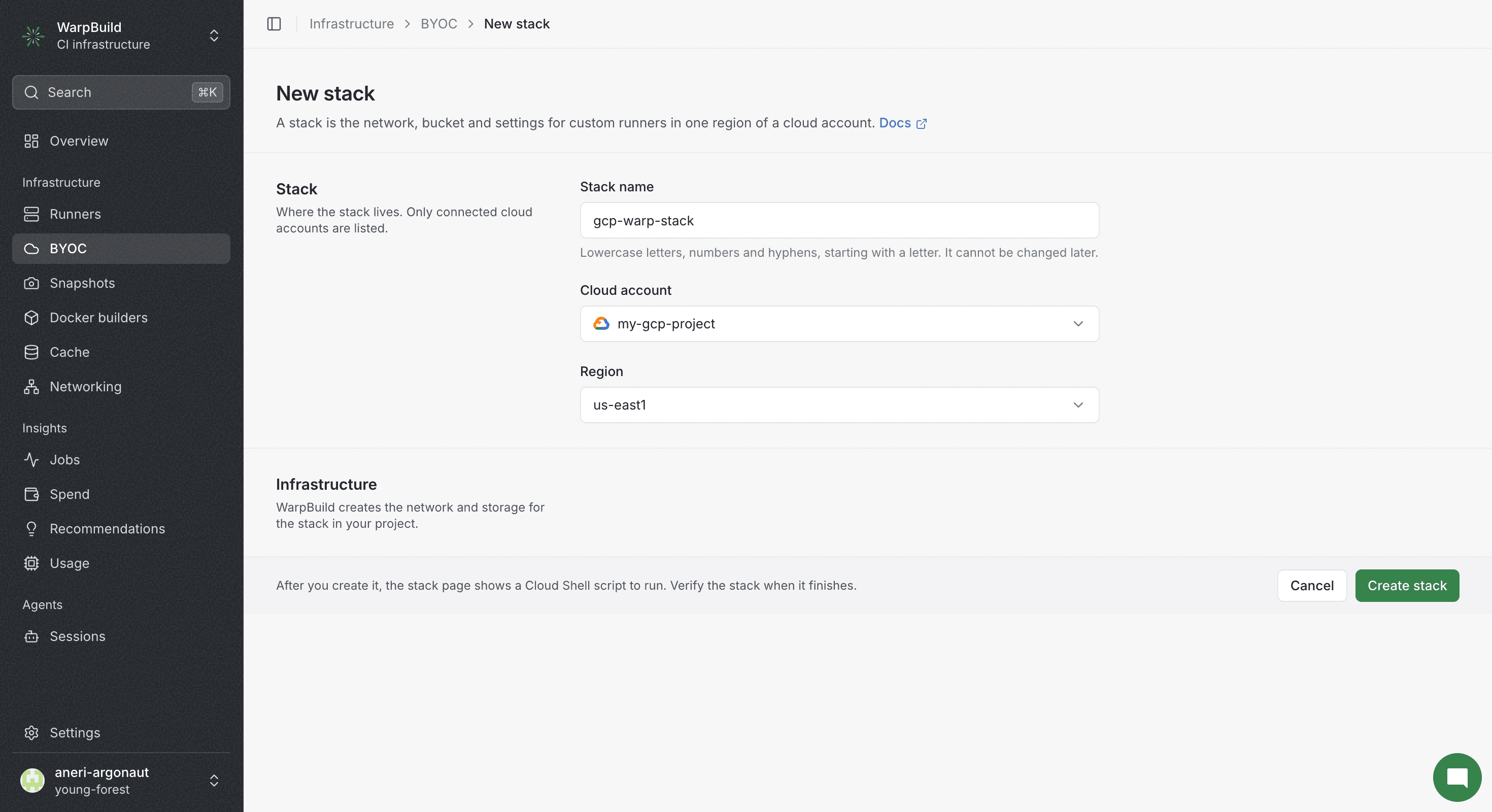

Create Stack

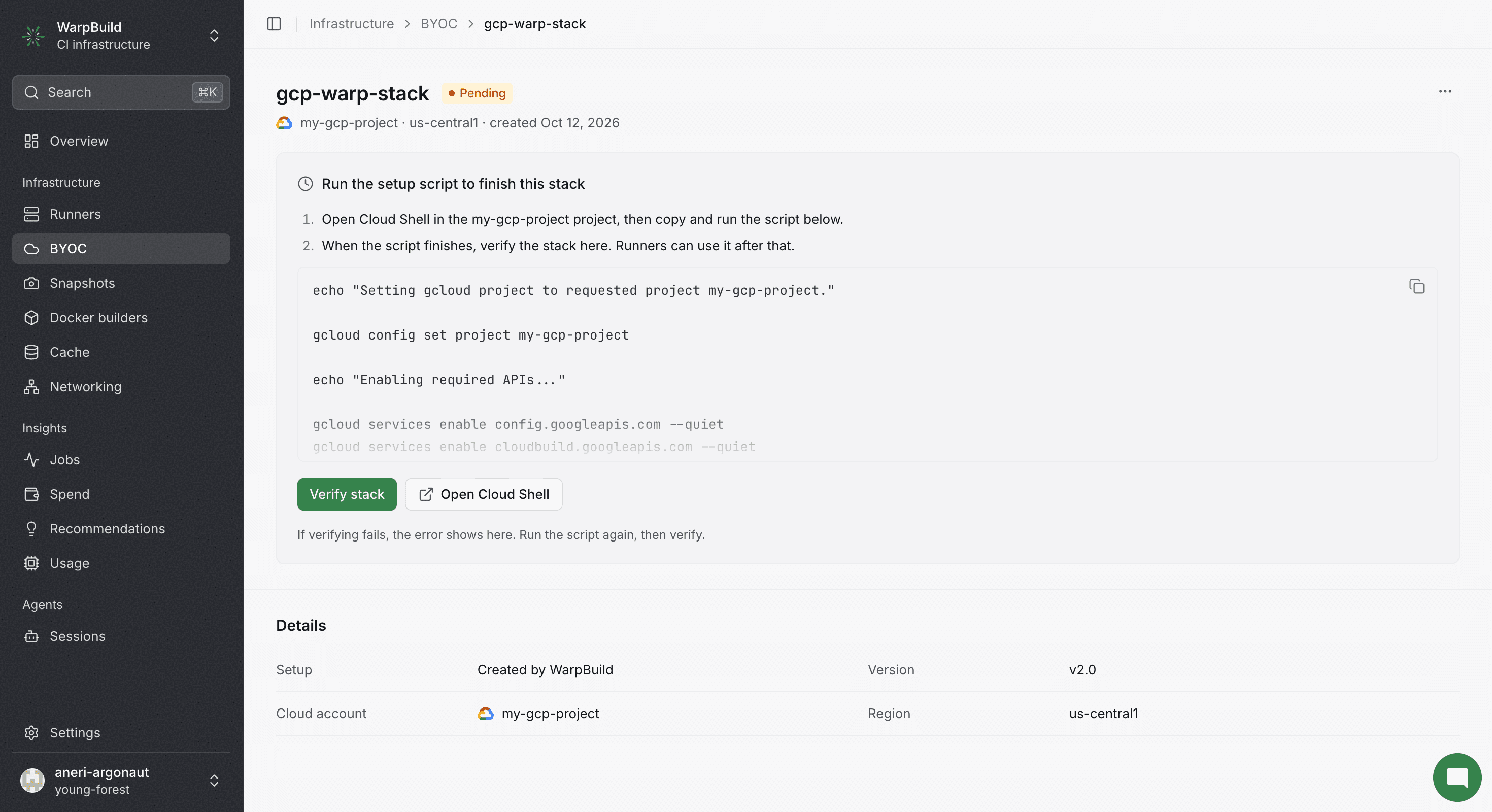

Creating a stack creates the infra configuration provided and uses the cloud storage bucket for cache and telemetry.

Create Stack

The stack name, cloud storage bucket, and region cannot be changed after creation.

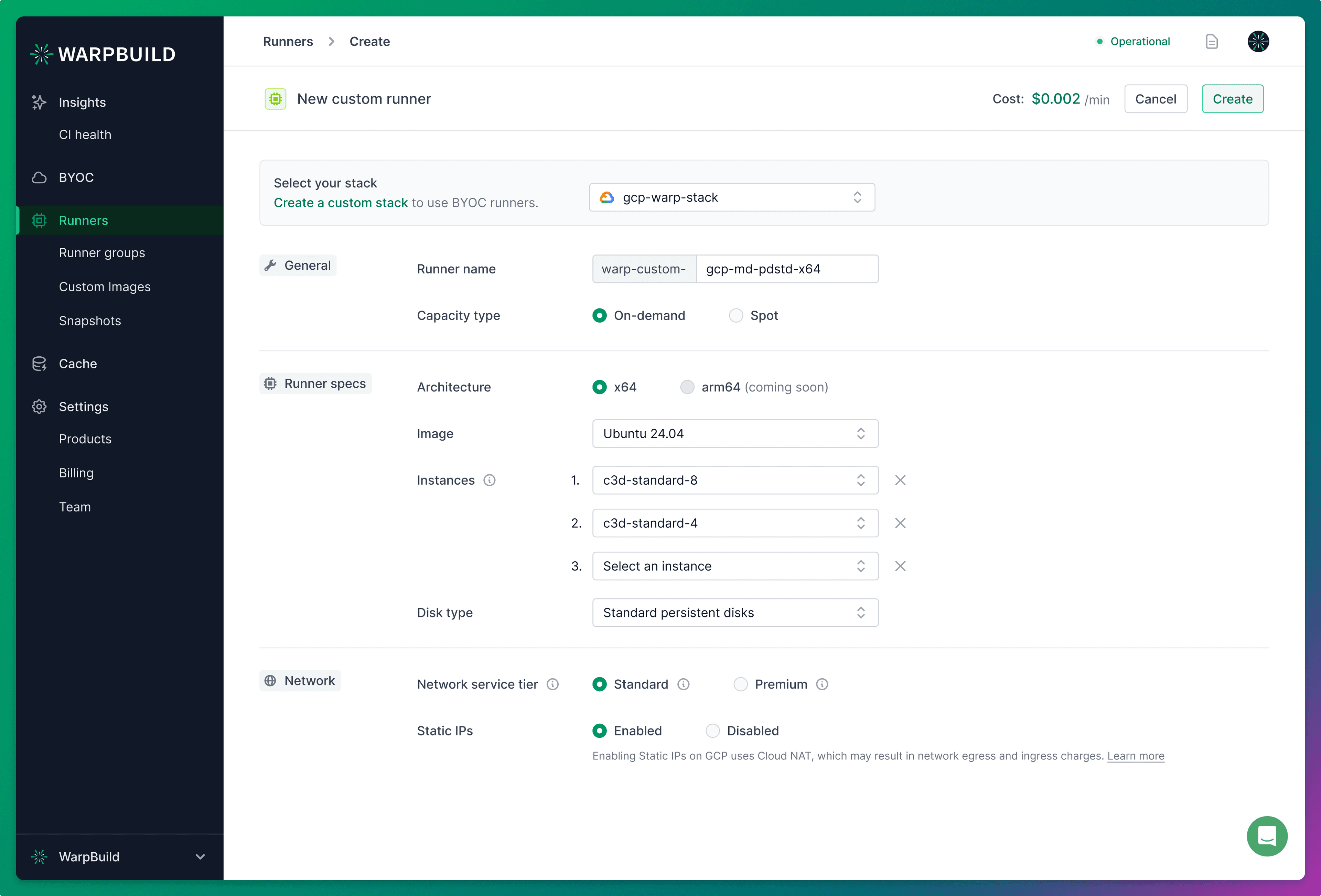

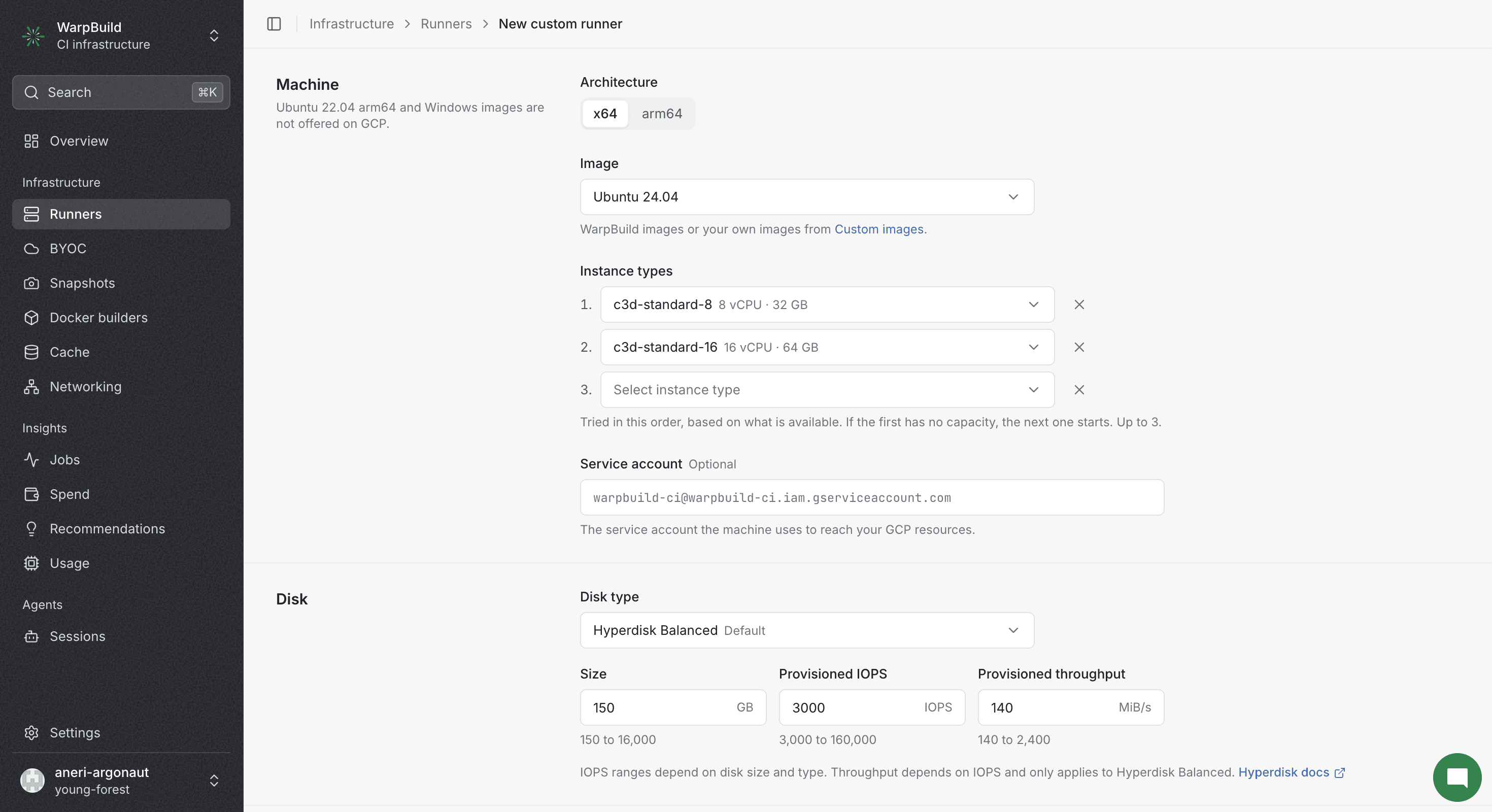

Custom Runners

Spot instances are useful for short jobs that can be interrupted and can lead to significant (~70%) cost savings.
One or more instance types in priority order can be chosen. The Github workflow uses a single runner label but picks the instance type based on availability.
The minimum disk configurations are:
- Size: 100GB

Disk types

The following disk types are available for GCP BYOC runners:

Disk Type	IOPS	Throughput	Notes
`pd-balanced`	Managed by GCP	Managed by GCP	Default. Good balance of price and performance.
`pd-ssd`	Managed by GCP	Managed by GCP	Higher baseline performance than `pd-balanced`.
`pd-standard`	Managed by GCP	Managed by GCP	Lowest cost, suitable for non-I/O-intensive workloads.
`hyperdisk-balanced`	3,000 – 160,000	140 – 2,400 MiB/s	Provisioned IOPS and throughput. Best for I/O-heavy CI workloads.
`hyperdisk-extreme`	300 – 350,000	N/A	Provisioned IOPS only. Highest IOPS ceiling for extreme workloads.

For pd-* disk types, throughput and IOPS are automatically managed by GCP based on disk size. Refer: https://cloud.google.com/compute/docs/disks/performance

For hyperdisk-* disk types, you configure provisioned IOPS (and throughput for hyperdisk-balanced) directly in the runner creation UI.

Best practices:

Use multiple instance types, especially when using spot instances to ensure availability and jobs aren't stuck in queue.
When using multiple instance types, choose instance types that are similar in price and performance.
Choose a minimum disk configuration of:
- Size: 150GB
For I/O-heavy workloads (large builds, container image operations, heavy test suites), use hyperdisk-balanced with a starting configuration of IOPS: 3000 and Throughput: 140 MiB/s, then scale up based on observed performance.
When using Hyperdisk types, ensure your GCP project has sufficient Hyperdisk IOPS and throughput quotas in the stack region.

Limitations

BYOC GCP does not support import flow for stack creation.
Snapshot-based runners are not available for BYOC GCP.

Coming Soon

Instances with LocalSSD
Resource tagging
